Specifications

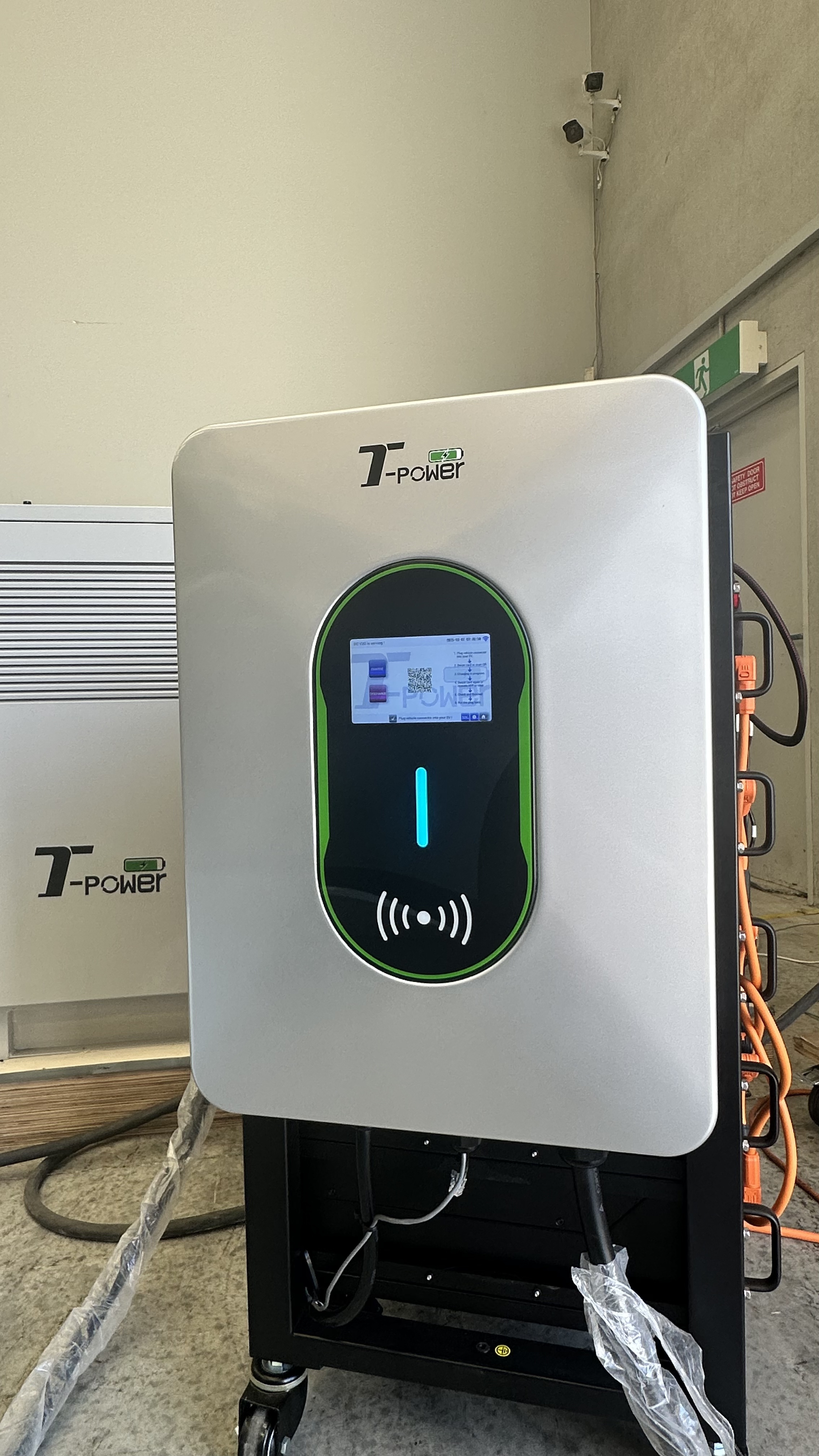

The product is a compact 7kW bidirectional DC charger designed for advanced V2G (Vehicle-to-Grid) applications. Supporting both 7kW DC charging and 7kVA AC discharging, it enables seamless energy flow between electric vehicles and the power grid, helping to optimize energy storage, peak shaving, and load balancing.
Engineered with ultra-wide voltage adaptability—from 150 to 1000V in rectifier mode and 300 to 1000V in inverter mode—the charger ensures reliable performance across diverse vehicle types and grid environments. With IP65-rated protection, low noise (<45dB), and operation from -40°C to 75°C, it meets the highest standards for indoor and outdoor deployment.

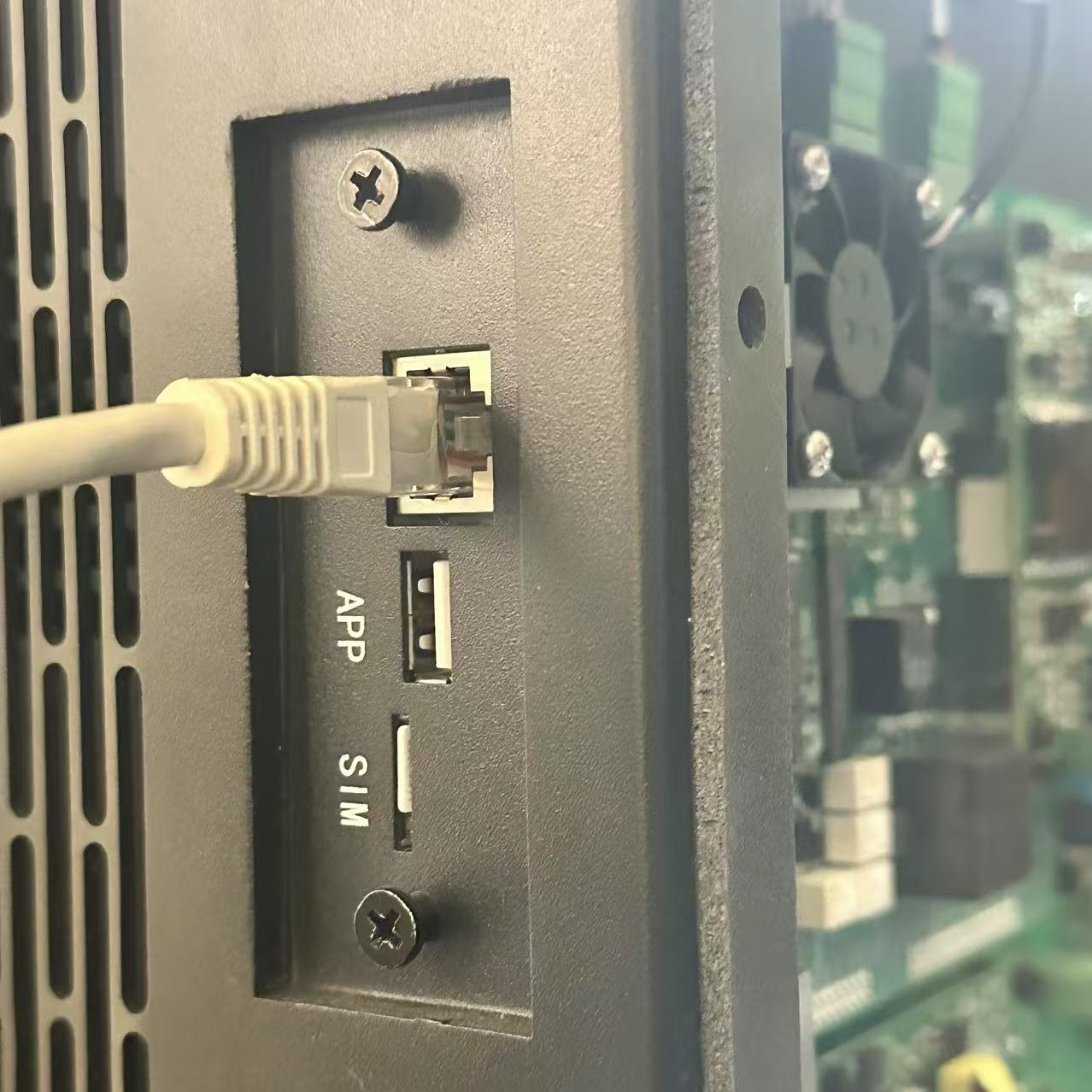

Equipped with advanced communication interfaces (Ethernet, 4G, RS232, RS485, CAN) and supporting protocols such as GBT, CCS2, the unit offers full remote operation, OTA upgrades, and flexible authentication methods including QR code scanning and RFID cards.

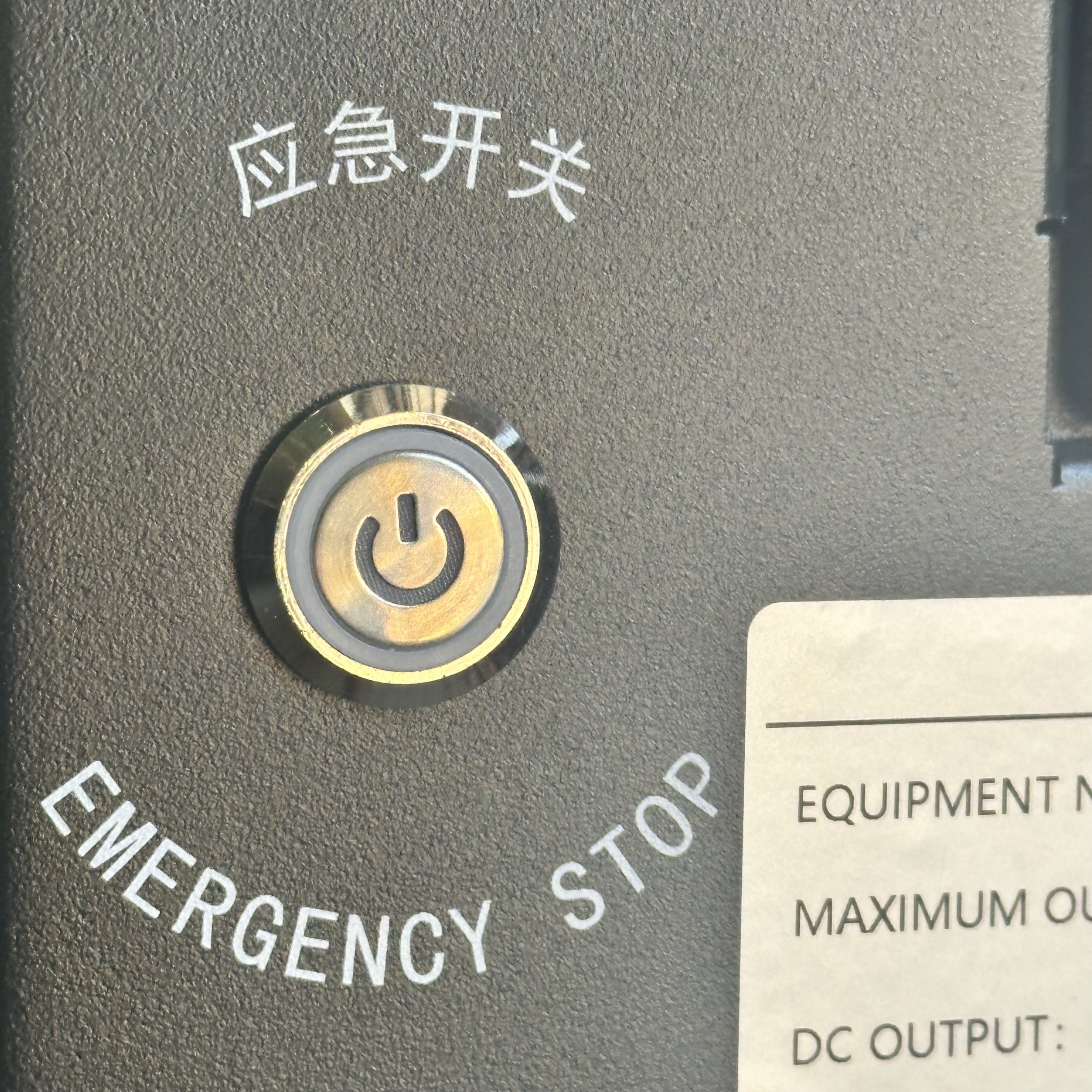

With an intuitive design, internal transformer isolation, and built-in safety features like emergency stop and precise voltage monitoring, the product is ideal for home energy systems, fleet depots, and distributed energy storage networks, enabling a smart, responsive energy ecosystem.
